Industrial PC


[New]NTP19KRF

Rack-19KRF

19”Rackmount (9U)
Touch Screen panel PC
Fanless Dust-Proof
19”(1280x1024)_ Color TFT LCD

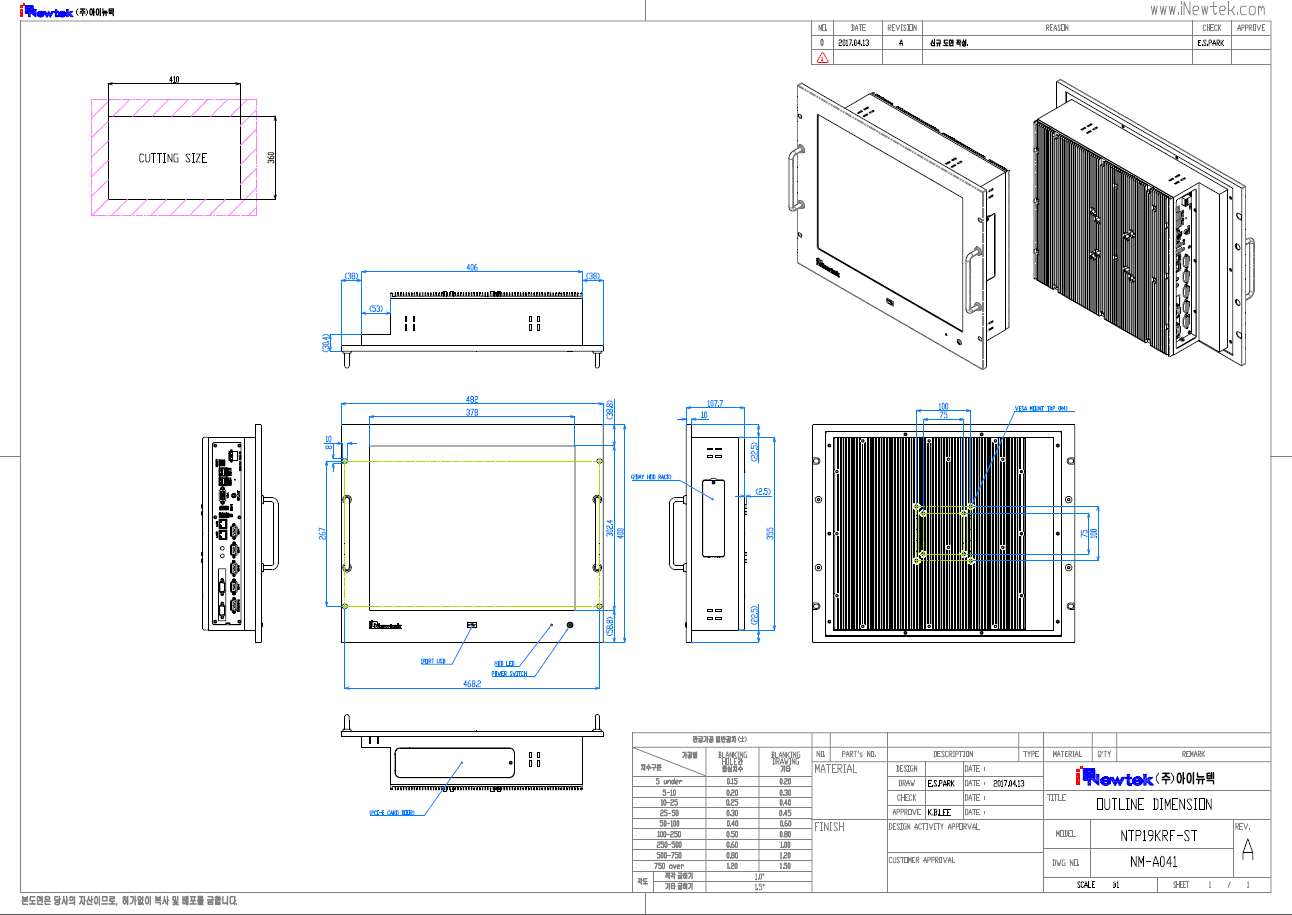

Product Drawings / Product Detail

19" Rackmount

All in one High performance System

Dust proof/ Fanless(Optional)





Features

Specification

 Display  19” LED Backlight LCD/ TFT LCD Panel
 Resolution : 1280 x 1024 (4:3 aspect ratio)
 White Luminance : 350 cd /㎡
 Contrast Ratio : 1000
 Touch Screen  5-Wire Resistive
 Touch interface : USB
 System

 Processor : Intel 6th Core i7 / i5 / i3 CPU
 BIOS : AMI uEFI BIOS, 128Mbit SPI Flash ROM
 System Chipset : H110
 I/O Chipset : Nuvoton NCT6106D

 Memory : DDR4 4G (Basic option)
 Two 260-pin SODDIM DDR4L 2133Mhz up to 32G

 Storage : SSD Flash Disk 128G (Basic Option)
 Option : SSD 256G/512G/1TB

 Multi Display : Dual

 Audio Code : Realtek ALC888S, 5.1-CH HD Audio Codec

 Expansion : 1x PCIe(4x)

 I/O

 Serial Port : 4x RS-232, 1x RS485(or RS422 Selectable)
 Ethernet : 2xLAN(GbE)
 (LAN1 - Intel I219LM GbE LAN)
 (LAN2 - Intel 82574L GbE LAN <- supports EtherCAT)
 USB : 5x USB (4x USB 3.0 / 1x Silicon Front USB 2.0)
 HDMI : 1x HDMI (1.4a support max resolution 4096 x 2160

  @30Hz)
 DP : 1x DP (Max. resolution 4096 x 2304 @ 60Hz)
 VGA : 1x VGA (Max. resolution 1920 x 1200 @ 60Hz)
 Audio Interface : 1x Mic in, 1x Line Out(SPK-OUT)
 Terminal Block : 1x 3pin Terminal Block
                     (DC12V, includes F.G pin)

 Electrical and
 Operating
 Requorements

 Input : AC100~240V(Adaptor) / DC12V(Terminal Block)
 Power Consumption : DC12V/10A(120W) or DC24V/5A(120W)
 Operating Temperature : 0℃ ~50℃ (32℉ ~122℉)
 Storage Temperature : -20℃ ~60℃
 Relative humidity :  0% ~ 90% noncondensing

Anti-Vibration : IEC60068-2-64, IEC60068-2-27

Electric Discharge : EN61000-4-2 / KN32,35 2015 / Contact : 4kV / Air : 8kV

 Installation Methods : LUG Bracket, VESA mount

                              19”Rackmount(9U)
 Dimension : 482 x 400 x 107.7
 Cutting Size : 410 x 360 (mm)
 Weight : 11.5 Kg

 Manufacturer  iNewtek Inc.
 Made in Korea



Optional

 Wireless LAN  Intel Wireless LAN IEEE 802.11a/b/g/n
 Mini PCI-E Slot
 Power isolation  DC Input Ground(GND) isolation
 HDD Rack  2Bay 2.5 SATA 3/2/1 (Slide Door, Plug&Play, Hot swap)
 O/S  Window 7 Pro for Embedded (Kor/Eng) 32bit/64bit
 Window 10 Iot Enterprise 64bit (O/S protection UWF-Option)

Product Assy
