[New]NTP15KF-IP

IPPanel-15KF-IP

Intel 6th Core i7/i5/i3
Front Stainless Bezel(IP65)
15”(1024x768)_ Color TFT LCD
Fanless Dust-Proof Touch Screen panel PC
KC, CE Certification

Product Drawings / Product Detail

IP-Panel

IP65 Panel PC

IP-Panel is Water-Proof on its front side.

The product can be used in beverage factory and meat processing factory.

* S-Panel is Full IP65.

Features

Specification

Display	15” LED Backlight LCD/ TFT LCD Panel Resolution : 1024 x 768 (4:3 aspect ratio) White Luminance : 300 cd /㎡ Contrast Ratio : 700
Touch Screen	5-Wire Resistive Touch interface : USB
System	Processor : Intel 6th Core i7 / i5 / i3 CPU BIOS : AMI uEFI BIOS, 128Mbit SPI Flash ROM System Chipset : H110 I/O Chipset : Nuvoton NCT6106D Memory : DDR4 4G (Basic option) Two 260-pin SODDIM DDR4L 2133Mhz up to 32G Storage : SSD Flash Disk 128G (Basic Option) Option : SSD 256G/512G/1TB Multi Display : Dual Audio Code : Realtek ALC888S, 5.1-CH HD Audio Codec Expansion : 1x PCIe(4x)
I/O	Serial Port : 3x RS-232 (1x RS485 or RS422 Selectable) Ethernet : 2xLAN(GbE) (LAN1 - Intel I219LM GbE LAN) (LAN2 - Intel 82574L GbE LAN <- supports EtherCAT) USB : 5x USB (4x USB 3.0 / 1x Silicon Front USB 2.0) HDMI : 1x HDMI (1.4a support max resolution 4096 x 2160 @30Hz) DP : 1x DP (Max. resolution 4096 x 2304 @ 60Hz) VGA : 1x VGA (Max. resolution 1920 x 1200 @ 60Hz) Audio Interface : 1x Mic in, 1x Line Out(SPK-OUT) Terminal Block : 1x 3pin Terminal Block (DC12V, Option)
Electrical and Operating Requorements	Input : AC100~240V(Adaptor) / DC12V(Terminal Block) Power Consumption : DC12V/10A(120W) or DC24V/5A(120W) Operating Temperature : 0℃ ~50℃ (32℉ ~122℉) Storage Temperature : -20℃ ~60℃ Relative humidity : 0% ~ 90% noncondensing Anti-Vibration : IEC60068-2-64, IEC60068-2-27 Electric Discharge : EN61000-4-2 / KN32,35 2015 / Contact : 4kV / Air : 8kV Installation Methods : LUG Bracket, VESA mount Dimension : 390 x 344 x 117.3 Cutting Size : 355 x 309 (mm) Weight : 8.7 Kg
Manufacturer	iNewtek Inc. Made in Korea

Optional

Wireless LAN	Intel Wireless LAN IEEE 802.11a/b/g/n Mini PCI-E Slot
Power isolation	DC Input Ground(GND) isolation ( 12 ~ 24V )
HDD Rack	2Bay 2.5 SATA 3/2/1 (Slide Door, Plug&Play, Hot swap)
O/S	Window 7 Pro for Embedded (Kor/Eng) 32bit/64bit Window 10 Iot Enterprise 64bit (O/S protection UWF-Option)

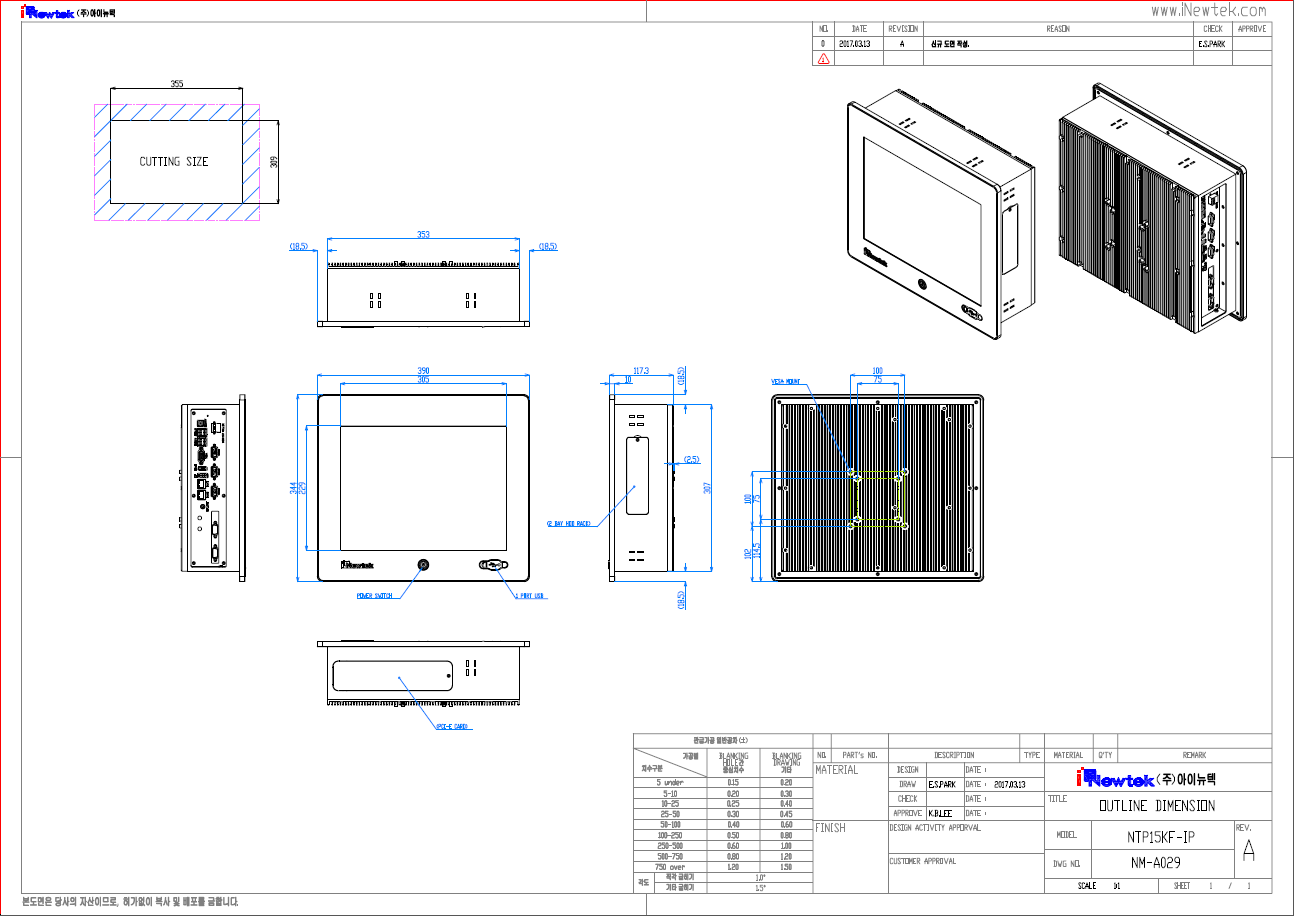

Product Assy

※ For detailed dimensions, please refer to the catalog.
