Industrial PC


NTP19KRF&V11

Rack-19KRF

Intel 6th - 11th Core i7/ i5/ i3
19”Rackmount (9U)
Touch Screen panel PC
Fanless Dust-Proof
19”(1280x1024)_ Color TFT LCD
KC, CE Certification

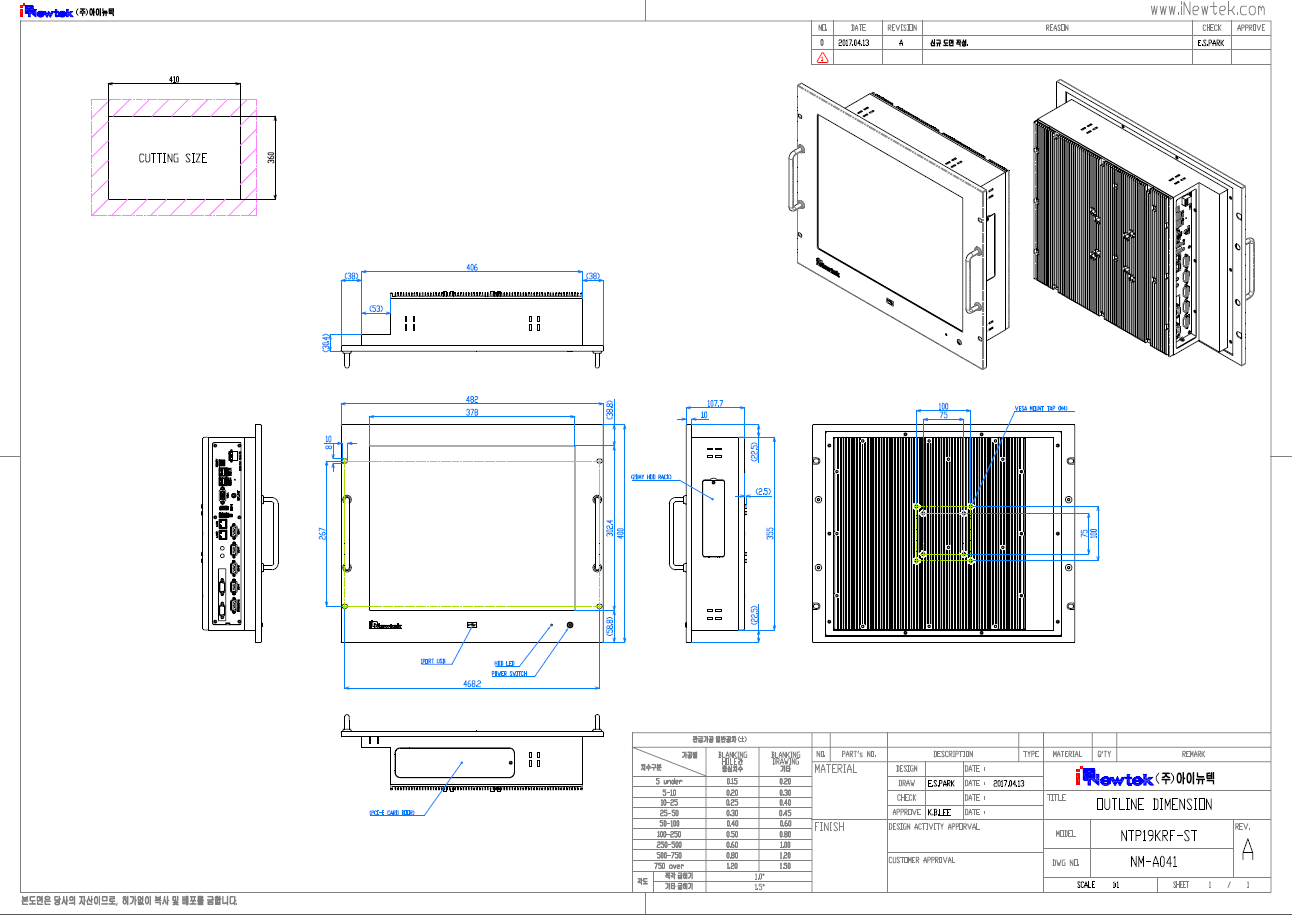

제품도면 / 제품세부사양



19" Rackmount



All in one High performance System

Dust proof/ Fanless







Features









Specification





KF Series NTP19KRF NTP19KRF-V11
Display LCD 19" LED Backlight / TFT LCD Panel
Resolution 1280 x 1024 (4:3 aspect ratio)
White Luminance 350 cd /㎡
Contrast Ratio 1000
Touch Sensor 5-Wire Resistive
Interface USB
System CPU Intel 6th Core Skylake Intel 11th Core Tigerlake
Memory DDR4 4G up to 32G DDR4 4G up to 64GB
Storage 2.5” SSD / HDD / M.SATA 128G ~ 1TB Select
Audio Realtek ACL888S 5-1CH
Expansion 1Port / 1PCIe x4
Interface



Ethernet



Intel I219-LM GbE LAN

WGI211-AT GbE LAN

Intel I225-IT 2.5GbE LAN

WGI211-AT GbE LAN

Serial Port RS 232 / 485 / 422 Select
USB 5xUSB (4xUSB 3.0 / 1xFront USB 2.0)
HDMI 4096 x 2160 60Hz  4096 x 2160 60Hz
DP 4096 x 2304 60Hz 4096 x 2160 60Hz
VGA 1920 x 1200 60Hz
Terminal Block 3pin DC 12V (Option : 24V)
Power Input Voltage

AC100 ~ 240V

DC12V (Option : 24V)

Consumption DC12V /10A (Option : 24V /5A)
Dimension 482 x 400 x 107.7 (mm)
Panel Cut 410 x 360 (mm)





Product Assy









※ 상세 치수는 카달로그에서 확인 가능합니다
