Industrial PC


NTP17-BFR

DPanel-170I03

19”Rackmount (8U)
Touch Screen panel PC
Fanless Dust-Proof
17”(1280x1024)_ Color TFT LCD

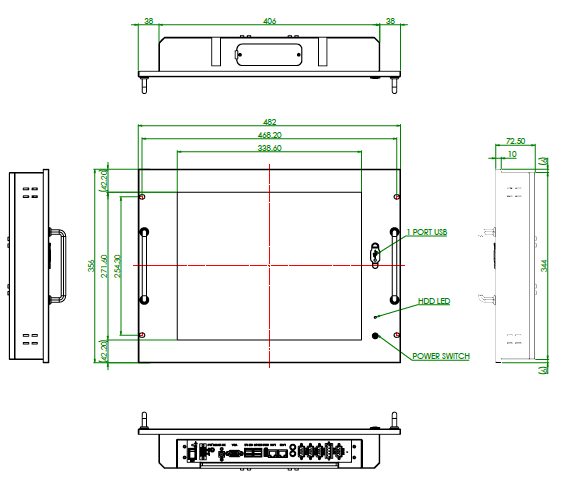

제품도면 / 제품세부사양



19" Rackmount



All in one High performance System

Dust proof/ Fanless(Optional)











Features



























Specification









 Display  17” LED Backlight LCD/ TFT LCD Panel
 Resolution : 1280 x 1024 (4:3 aspect ratio)
 White Luminance : 350 cd /㎡
 Contrast Ratio : 800
 Touch Screen  5-Wire Resistive
 Touch interface : USB
 System

 Processor : Intel® Baytrail-D J1900 2.0Ghz Quad Core SOC
 BIOS : AMI uEFI BIOS, 64Mbit SPI Flash ROM
 System Chipset : Valleyview SoC Integrated
 I/O Chipset : NCT6106D(Nuvoton)
 Memory : DDR3L 4G (Basic option)
 One 204-pin SODIMM DDR3L 1066/1333 Mhz Up to 8GB
 Storage : SSD Flash Disk 128G(MLC)(Basic Option)
 Option : SSD 256G/SDD 500G/SDD 1TB
 Audio Code : Realtek ALC888S Support 5.1-CH Audio
 DVD-ROM : No.

 I/O  Serial Port :

 Select 1 : 4x RS-232 / 1x RS485 (Basic)

 Select 2 : 3x RS-232 / 1x RS422 / 1x RS485

 Ethernet : 2xLAN(GbE)
 (LAN1 - Realtek RTL8111E)
 (LAN2 - Intel WGI211AT GbE LAN)
 USB : 5x USB (1x USB3.0 / 4x USB 2.0)
 HDMI : 1x HDMI (1.3 support max resolution 1920x1200@ 60Hz)
 VGA : 1x VGA(Max. resolution 1920 x 1200 @ 60Hz)
 Audio Interface : 1x Speaker jack
 Terminal Block : 1x 2pin Terminal Block(DC12~24V)
 Electrical and
 Operating
 Requorements

 Input : AC100~240V(Adaptor) / DC12-24V(Terminal Block)
 Output : DC12V/5A(60W)
 Operating Temperature : 0℃ ~50℃ (32℉ ~122℉)
 Storage Temperature : -20℃ ~60℃ (-4℉ ~140℉)
 Relative humidity :  0% ~ 90% noncondensing

Anti-Vibration : IEC60068-2-64, IEC60068-2-27

Electrostatic Discharge : EN61000-4-2 / KN32,35 2015 / Contact : 4kV / Air : 8kV

 Installation Methods : Panel mount

 VESAMOUNT : 75x75 / 100x100
 Dimension : 438 x 356 x 85
 Cutting Size : 410 x 348 (mm)
 Weight :  7 Kg

 Manufacturer  iNewtek Inc.
 Made in Korea









Optional







 Wireless LAN  Intel Wireless LAN IEEE 802.11a/b/g/n
 Mini PCI-E Slot

 O/S  Window 7 Pro for Embedded (Kor/Eng) 32bit/64bit
 Window 10 Iot Enterprise 64bit (O/S protection UWF-Option)







Product Assy
